With metal materials processed into the shape of the section as entity metal gasket, octagon or elliptic, etc have radial since the tight sealing effect. Resistance to high temperature, high pressure, suitable for high pressure flange, Seal durable and reliable, To adapt to the load frequency varying working condition.
With metal materials processed into the shape of the section as entity metal gasket, octagon or elliptic, etc have radial since the tight sealing effect. Resistance to high temperature, high pressure, suitable for high pressure flange, Seal durable and reliable, To adapt to the load frequency varying working condition.
| Type | Cross section |

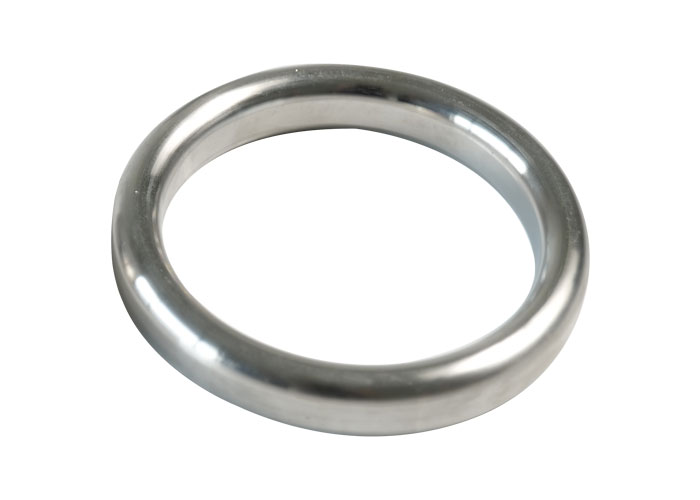

| Oval Type |
|
| Octagonal Type |
|
| RX Type |
|
| BX Type |
|
| Delta Type |
|
| lens type |
|
| Material | Code | Hardness | Temperature ℃ | |
| HB | HRB | |||
| Soft iron | D | ≤90 | ≤56 | ≤450 |
| Carbon | S | ≤120 | ≤68 | ≤450 |
| 5Cr-1/2Mo | F5 | ≤130 | ≤72 | ≤650 |
| 410SS | 410 | ≤170 | ≤86 | ≤540 |
| 304SS | 304 | ≤160 | ≤83 | ≤700 |
| 304LSS | 304L | ≤150 | ≤80 | ≤450 |
| 316SS | 316 | ≤160 | ≤83 | ≤700 |
| 316LSS | 316L | ≤150 | ≤80 | ≤450 |
| 321SS | 321 | ≤160 | ≤83 | ≤700 |
| 347SS | 347 | ≤160 | ≤83 | ≤700 |
| Monel 400 | MON | ≤160 | ≤815 | |
| Inconel 625 | INC 625 | ≤200 | ≤1095 | |
| Incoloy 825 | IN 825 | ≤160 | ≤1095 | |
standard：ASME B16.20、HG/T 20633、HG/T 20612、SH3403…
Please provide working condition requirements, standard, material, size, pressure rating, or indicate the nominal diameter in orders。
