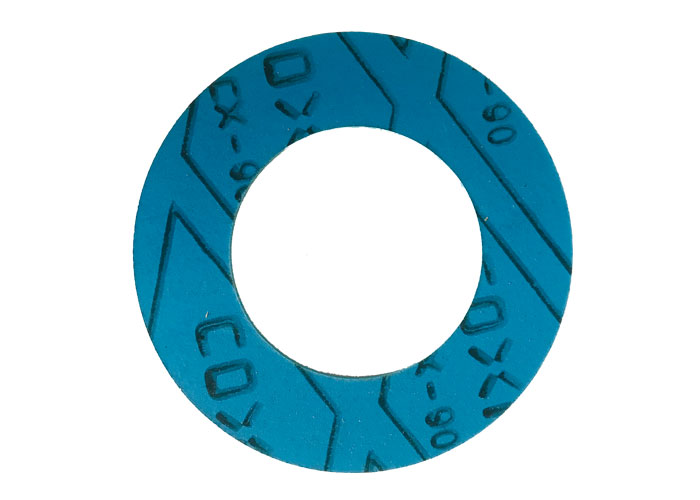

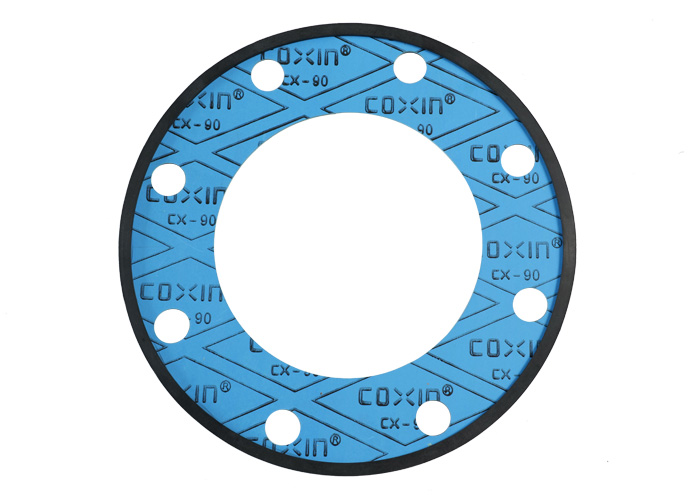

product detailscurrent location ： home > Product Center > product detailsNon asbestos gasket
According to specific condition requirements, with no asbestos sealing material (in synthetic mineral fiber, aramid fibers, high temperature resistant material such as oil resistant rubber), by using the rolling method or stamping tools, cut into various shapes of sealing products.
- Product Description
According to specific condition requirements, with no asbestos sealing material (in synthetic mineral fiber, aramid fibers, high temperature resistant material such as oil resistant rubber), by using the rolling method or stamping tools, cut into various shapes of sealing products.
he highest temperature：350℃
The highest working pressure：2.5MPa
specifications：
Width：1000mm-1500mm
length：1500-4500mm
Thickness：0.5-5mm
Special specifications negotiation with customer
Project
Indicators
Ordinary
Oil resistant
Density /g/cm3
1.8±0.2
Tensile strength (horizontal) /MPa
≥7.0
compression ratio/%
7~17
Resilient rate/%
≥40
Creep relaxation rate/%
≤40
Always tender and soft
No crack
Nitrogen gas leakage rate /ml/min
≤1
After dipping IRM903 oil or 3 oil performance
（149℃±2℃, 5h）
The transverse tensile strength rate/%
-
≤30
Thickening rate/%
-
0~15
Thickening rate/%
-
≤20
After dipping ASTM fuel oil B performance（21℃~30℃,5h）
Thickening rate/%
-
0~15
Thickening rate/%
-
≤20
Thickness is greater than 3.0 mm gasket materials do not do transverse tensile strength test.
Screen enhance gasket material, do not do transverse tensile strength and the rate of nitrogen gas leakage test.
